3D Laser Scanning Systems

3D Laser Scanning Systems

3D Laser Scanning Kit, SHTRIKH-2 Series

3D Laser Scanning kit is designed for mounting on any type of CNC machine and intended for non-contact scaning of products and obtaining 3D computer-simulated models.

In the scanning mode, he machine CNC system moves the sensor line-by-line over the item prototype. Thus, XYZ coordinate array for the surface is formed, i.e.a digial prototype model is created which is saved as a point cloud file as well as in a common STL format suitable for subsequent use in CNC.

System features :

  • Materials to be scnned : any maerial
  • Size of scanning area : arbitrary
  • Average scanning speed, points/s : up to 100 000
3D Laser Measurement Machine RF1010SL

3D Measurement Machine was specially developed to measure suspension arm's parameters for automotive industry. Laser scanner RF620 Series, which is installed in the machine, scans the suspension arm, measures and controls its geometrical parameters.

Machine features :

  • Nominal sampling rate, profiles/sec : 250
  • Scanning speed, mm/s : 3,5
  • Accuracy, of the range : 0.1%
Rifled barrel inner diameter and grove geometry measuring device with video control

The device is designed for semi automatic control of inner surface of rifled barrel in armed forces during maintenance.

Machine features :

  • Non-contact laser barrel inner surface profile measurements with a rotating laser scanner
  • Autonomous probe with precise positioning with laser rangefinder
  • nner surface video control
3D Laser Measurement Machine RF1240TB

3D Measurement Machine is specially designed for control of geometric parameters of large diameter pipes. The machine consists of 24 wide-range high speed synchronized laser scanners type

RF620HS-650 located on the outer circumference of the pipe, which makes it possible to inspect full profile of the pipe in the course of manufacture.

Machine features :

  • Pipes diameter range, mm : 500...1450
  • Accuracy, of the range : 0,1%
3D Laser Measurement Machine RF1010SS

3D measurement machine is specially designed for non-cintact measurementof geometrical parameters of objects, specifically sunflower seeds. Laser scanner RF620 Series, that is installed in the machine, scans the objects and identifies it"s geometry. As result of scanning we get the parameters of every sunflower seed and their total quantity.

Machine features :

  • Nominal sampling rate, profiles/sec : 250
  • Scanning speed, mm/s : 25
  • Accuracy, um : ±150
3D Laser Measurement Machine RF1040TB

3D measurement machine is specially designed for control of geometric parameters of pipes. The machine consists of 4 wide-range high speed synchronized laser scanners type RF620HS-300 located on the outer circumference of the pipe, which makes it possible to inspect full profile of the pipe in the course of manufacture.

Machine features :

  • Pipes diameter range, mm : 500...1450
  • Accuracy, um : 50

Special measurement instruments

Online Systems for Control and Regulation of Diameter

The systems are intended for in-process non-contact measurement, control and regulation of diameter of various objects (wire, hoses, tubes, rods, sausage casings, etc.

System features :

  • Measurement ranges, mm : 2...100
  • Accuracy, um : ±1...50
  • Number of axes under control : 1...4
Online System for Film thickness measurement

The system is intended for contactless measurements of thickness.

System features :

  • Measurement ranges, mm : 5
  • Accuracy, um : ±5
  • Quantity of laser sensors : 8
Automated System for motor shafts measurement

The systems is intended for motor shafts measurements.

Machine features :

  • Measurable diameters, mm : 0,1 to 25
  • Accuracy, um : ±1
  • Linear range of the slide, mm : 200
  • Scanning speed, mm/s : 50
Laser Systems for inner diameter measurement

Systems are intended for contactless measuring of inner diameter of gun barrels, cylindrical and taper pipes.

Systems features :

  • Measurement range, mm : 100...1200
  • Accuracy, um : ±2...±150
  • Number of laser sensors : 6

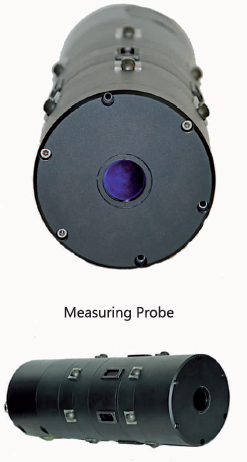

Gun Barrel Linearity and inner diameter measurement system for smooth gun barrels

The device is designed for automatic smooth bore linearity and inner diameter measurement in armed forces during tank maintenance.

Systems features :

  • straightness rnge, mm : -4,9...4,9
  • Straightness measuring accuracy, mm : 0,015
  • Inner diameter range, mm : 123...158
  • Inner diameter measuring accuracy, mm : 0,015
  • Barrel length, mm : up to 10000
  • Probe positioning accuracy, mm : 1,5

Main features :

  • Non-contact pecise laser linearity measurement for tank aiming computer correction coefficients to improve shooting accuracy
  • Non-contact laser inner diameter measurements by 6-point laser sensor or by rotating laser scanner
  • Autonomous motorized probe with precise positioning by laser rangefinder
  • Wireless data transfer
