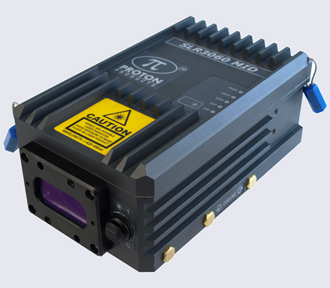

Proton Products InteliSENSTM SLR-MID Series non-contact, bidirectional speed and length gauges provide extremely accurate speed and length measurements in almost any production environment and are MID-certified (certificate number: UK/0126/0120) for final shipping length measurement for products destined for EU-markets (EU Directive 2004/22/EC).
Automatic direction detection and measurement down to zero speed means that the InteliSENSTM SLR gauge length measurement counts both up and down, so final length measurements will still be accurate to 0.05% even with production lines that exhibit stoppage, direction reversal and creepage.
Production processes for wire, cable, web products, woven and non-woven materials, paper, plastic film, tapes, building materials, floorings and labelling can all be measured using the laser Doppler method.
Applications requiring a precise cut-to-length process benefit from the non-slip and highly accurate laser measurement technique which reduces scrap, increases uptime and improves material yield by eliminating product ¡°Give Away¡± or ¡°Short Length¡± claims.
InteliSENSTM SLR-MID Series gauges are money-saving, direct replacements for traditional problematic and high-maintenance contact wheel and roller-type devices and are extremely easy to install and operate. Integration with production line controllers such as PLCs is eased by the availability of a wide variety of industry standard communications interfaces.
The InteliSENSTM SLR-MID Series is fully-certified to Class 1 accuracy (0.125%) for final shipping length measurement on bidirectional lines for products destined for EU-markets (EU Directive 2004/22/EC).
Proton Products InteliSENSTM series speed and length gauges illuminate the measured surface with a precisely pitched interference pattern created by the intersection of two laser beams. The alternating bright and dark interference fringes modulate the light scattered by the object with a frequency proportional to the object speed. This scattered light is detected by a photodiode and the electrical signal digitally processed to determine the frequency and hence the speed. Object length is then calculated by integrating the speed measurement over time.
The InteliSENSTM SLR-MID Series bidirectional speed and length gauges extend this principle by using a high-frequency Bragg cell modulator to illuminate the measured surface with a scanning interference pattern, which generates an oscillating light signal even when the object is stationary. Direction of motion is determined by whether the scattered light frequency is higher or lower than the stationary frequency.
Model | SLR3060-MID | Units |
---|---|---|
Stand-off distance | 300 | mm |
Depth-of-field | 60 | mm |
Maximum speed (bidirectional) | 5000 | m/min |
Minimum single length measurement | 0.4 | m |
Scale interval | 0.1 | mm |
Accuracy class | 1 | - |
Specification | Minimum | Typical | Maximum | Units |
---|---|---|---|---|
Accuracy | 0.125 | % | ||
Acceleration | 500 | m/s2 | ||
Measurement interval | 40 | µs | ||
Laser spot size | 3 | mm | ||
Operating temperature | 5 | 45 | ¡ÆC | |
Environmental protection | IP67 | - | ||
Weight | 3 | kg | ||
Length | 230 | mm | ||
Width | 130 | mm | ||
Height | 75 | mm | ||
Power supply | 15 | 24 | 25 | VDC |
Power consumption | 20 | W |
Measurement units | Speed | metres / minute | ||
Length | metres | |||
Laser safety control inputs | Laser | An external closed SPST contact enables the laser diode. | ||
Shutter | An external closed SPST contact opens the laser shutter. | |||
2¡¿Logic inputs | Electrical | Maximum input voltage: +24Vdc | ||
Function | Direction | Length reset | End of reel (trigger printout) | |
3¡¿Relay outputs | Electrical | Isolated, floating relay contacts | ||
Maximum voltage: 50Vdc | Maximum current: 0.5A | |||
Function | Gauge Fault | Preset Length 1 | Preset Length 2 | |
2¡¿Pulse outputs | Electrical | Opto-isolated differential pairs | ||
Output voltage: 5V or user supplied (up to 24V) | ||||
Maximum frequency: 250kHz | ||||
Function | Quadrature (1000 pulses/m) | Index (1 pulse/m) | ||

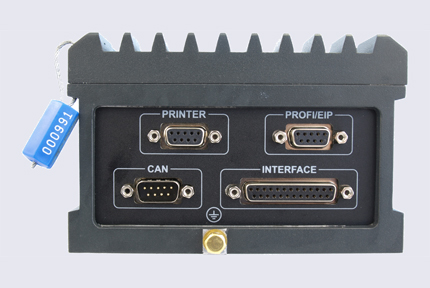

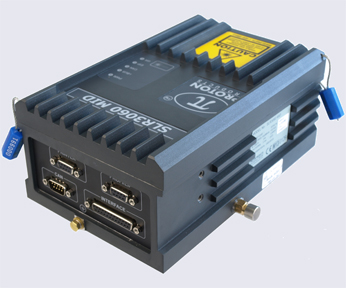

CANbus communications | Connects to a Proton Products AiG2-MID interface display unit | |||
Serial communications | RS-232 Printer port | |||
Industrial bus communications | PROFIBUS | |||
Options | External printer for batch length ticket printing. |
