Speed & Length Measurement

InteliSENS™ SL Series download

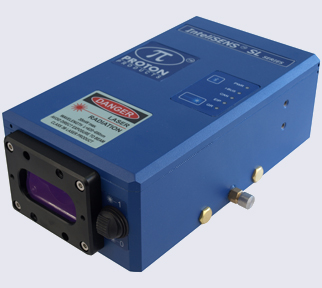

InteliSENS™ SL Series - front view

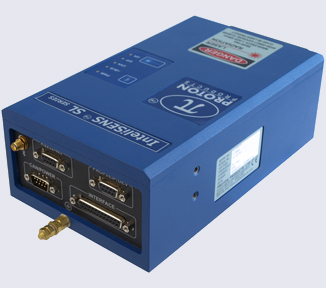

InteliSENS™ SL Series - rear view

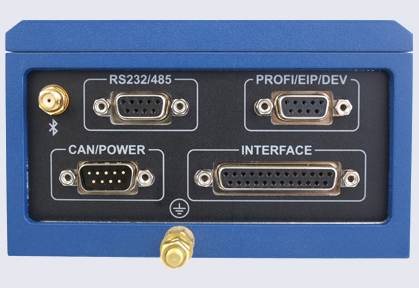

InteliSENS™ SL Series - connector panel view
InteliSENS™ SL Series - with optional AiG2 interface display unit

Features

  • Non-contact, high-speed, solid-state laser speed and length measurement with no slippage, drift, mechanical wear or maintenance compared with contact wheel / roller systems.
  • Unidirectional speed and length measurement.
  • UKAS-traceable calibration; accuracy better than 0.05% and repeatability better than 0.02%.
  • Rugged industrial design for use in harsh factory environments.
  • Available fitted with industry-standard communcations interfaces for easy integration with PLCs and production line equipment.
  • Excellent value with low cost of ownership.

Introduction

Proton Products InteliSENSTM SL Series non-contact, unidirectional speed and length gauges provide extremely accurate speed and length measurements in almost any production environment.

Production processes for wire, cable, web products, woven and non-woven materials, paper, plastic film, tapes, building materials, floorings and labelling can all be measured using the laser Doppler method.

Applications requiring a precise cut-to-length process benefit from the non-slip and highly accurate laser measurement technique which reduces scrap, increases uptime and improves material yield by eliminating product “Give Away” or “Short Length” claims.

InteliSENSTM SL Series gauges are money-saving, direct replacements for traditional problematic and high-maintenance contact wheel and roller-type devices and are extremely easy to install and operate. Integration with production line controllers such as PLCs is eased by the availability of a wide variety of industry standard communications interfaces.

Operating principle

Proton Products InteliSENSTM SL series speed and length gauges illuminate the measured surface with an interference pattern created by the intersection of two laser beams. The alternating bright and dark interference fringes modulate the light scattered by the object with a frequency proportional to the object speed. This scattered light is detected by a photodiode and the electrical signal digitally processed to determine the frequency and hence the speed. Object length is then calculated by integrating the speed measurement over time.

Specifications

Model
SL1525
SL3060
SL6060
Units
Stand-off distance 150 300 600 mm
5.91 11.8 23.6 inch
Depth-of-field 25 60 60 mm
0.98 2.36 2.36 inch
Minimum speed 0.1 0.2 0.2 m/min
0.3 0.6 0.6 ft/min
Maximum speed250050005000m/min
82001640016400ft/min

Common Specifications

Specification
Minimum
Typical
Maximum
Units
Accuracy*0.05%
Repeatability0.02%
Acceleration500m/s2
Measurement interval40µs
Laser spot size3mm
Operating temperature545°C
41113°F
Environmental protectionIP67
Weight3kg
6.6lb
Length230mm
9.06inch
Width130mm
5.12inch
Height75mm
2.95inch
Power supply152425VDC
Power consumption20W
only valid if the measured object is positioned within the central 20% of the depth-of-field.
Measurement units (end-user configurable)Speedmetres/minutefeet/minute
Lengthmetresfeetyards
Laser safety control inputsLaserExternal closed contact enables laser diode.
ShutterExternal closed contact opens laser shutter.
2×Logic inputs (end-user configurable)ElectricalMaximum input voltage: +24Vdc
FunctionLength resetDisplay holdLength hold
Speed holdDirectionPause
3×Relay outputs (end-user configurable)ElectricalIsolated, floating relay contacts
Maximum voltage: 50VdcMaximum current: 0.5A
FunctionGauge OKLaser at tempShutter openLaser on
MeasuringPreset Length 1Preset Length 2
3×Pulse outputs (end-user configurable)ElectricalOpto-isolated differential pairs
Output voltage: 5V or user supplied (up to 24V)
Maximum frequency: 250kHz
FunctionQuadratureIndex
Analogue output (end-user configurable)ElectricalOutput voltage: 0 to +10V (end-user scalable)
FunctionSpeedGood readings
CANbus communicationsConnects to an optional Proton Products AiG2 interface display unit
Serial communicationsRS-232RS-422 / 485
Optional communications (factory-installed, choice of one)PROFIBUSEthernet/IPDeviceNET
Optional wireless communications (factory-installed, choice of one)WiFiBluetooth
Other optionsForward / reverse roller for direction sensing

Accessories

Interface display modules

AiG1

Display module

  • Connects via the RS-232 port.
  • Displays measured speed, length and preset length.
  • Provides setting of preset length and speed limits.

Proton part number: 00001MC970

AiG2-SL

Display module

  • Connects via the CAN-bus port.
  • Displays measured speed and length.
  • Provides menu-based setting of all parameters.
  • Bright vacuum fluorescent dot matrix display.
  • Mounts directly on the gauge body or remotely via an extension cable.

Proton part number: 00041MC045

CAN-bus cable

For connecting the gauge to an AiG2 interface display unit

  • Available in 5, 10, 15, 20, 30 and 50m lengths.
Name Length / m Proton part number
CAN 9DD-005 5 00041CB005
CAN 9DD-010 10 00041CB010
CAN 9DD-015 15 00041CB015
CAN 9DD-020 20 00041CB020
CAN 9DD-030 30 00041CB030
CAN 9DD-050 50 00041CB050
CS1G-SL

Display, PSU, break-out box and laser safety key switch

  • Connects via the “INTERFACE” connector and RS-232 port.
  • Displays measured speed, length and preset length.
  • Supplies electrical power to the gauge.
  • Provides screw terminal access to all “INTERFACE” connector input and output pins.
  • Provides a laser enable key switch for compliance with laser safety requirements.

Proton part number: 00018MC140

Power supplies and connectivity

PSU-DT

Mains power adapter

  • Connects via the DB25 “INTERFACE” connector.
  • Supplies electrical power to the gauge.
  • Input voltage range: 90 - 260 VAC @ 45 - 65 Hz.

Proton part number: 0001MC264

PSU-BOB-SL

Power supply, break-out box and laser safety key switch

  • Connects via the DB25 “INTERFACE” connector.
  • Supplies 24VDC electrical power to the gauge.
  • Provides screw terminal access to all “INTERFACE” connector input and output pins.
  • End user cables are sealed with three cable glands.
  • Provides a laser enable key switch for compliance with laser safety requirements.
  • Input voltage range: 90 - 260 VAC @ 45 - 65 Hz.

Proton part number: 00041MC360

Terminal Strip-DIN

Power supply, break-out box and laser safety key switch

  • Breaks out the DB25 “INTERFACE” connector to a DIN rail mountable set of screw terminals.

Proton part number: 00041MC730

DB25 Cable

For connecting the gauge “INTERFACE” port to a PSU-BOB-SL, Terminal Strip-DIN or CS1G-SL

  • Available in 3, 5, 10, 20 and 30 m lengths.
Name Length / m Proton part number
BOB-003 3 00043MC021
BOB-005 5 00041CT005
BOB-010 10 00041CT010
BOB-020 20 00041CT020
BOB-030 30 00041CT030
RJ45 to DB9 converter
  • For connecting RJ45 8P8C terminated cables to the DB9 EtherNet / IP port.

Proton part number: 00003CM229

Direction sensing

FR Roller

Direction Wheel

  • For connection to Proton SL gauges for direction sensing (not applicable to SLR gauges).
  • The roller is placed in contact with the object surface to detection direction of motion.

Proton part number: 00033MC060

Software

PCIS_SL

PC Interface Software

  • PC-based software package.
  • User-friendly graphical user interface.
  • Displays all measurements.
  • Provides menu-based setting of all parameters.
  • Provides trending, data logging, presets and alarms.
  • Gauge to PC connection via RS-232 or optional RS-232-to-USB interface cable (RSCon).

Proton part number: 00020SW100

Mountings and laser safety

Tripod

Portable tripod and boom mount

  • Suitable for gauges that need to be moved from location to location e.g. as a calibration reference for mechanical encoders.
  • Based on a light weight, portable industrial tripod and extendable aluminium boom (00020TL003).
  • Two swivel joints (00043MC004) permit easy angular alignment of the boom and the gauge.
  • A connection plate (00020TL605) is included for attachment to gauges not fitted with a UNC 3/8” thread

Proton part number: 00043MC003

PHA-1

Precision height adjuster

  • For precision height adjustment of the laser beam to the object under measurement using a hand wheel and lead screw.
  • Adjustment range accommodates object diameters from 0.05 mm (0.002”) to 200 mm (7.88”).

Proton part number: 00030MC200

PHA-1 3D ADJ

3-axis Precision height adjuster

  • For precision height adjustment of the laser beam measurement zone to the object under measurement using a hand wheel and lead screw.
  • Height adjustment range accommodates object diameters from 0.3 mm (0.012”) to 200 mm (7.88”).
  • Has two additional adjustment axes for aligning the roll and yaw for maximum measurement accuracy.

Proton part number: 00030MC140

SL Laser Guard PHA-1

Laser safety enclosure for PHA-1

  • Mounts to a PHA-1 to prevent accidental viewing of direct and reflected laser beams.
  • Integrated interlock switch engages the gauge laser shutter whenever the guard cover is opened.

Proton part number: 00020MC250

SL Laser Guard PHA-1

Laser safety enclosure for PHA-1 (with side skirts)

  • Mounts to a PHA-1 to prevent accidental viewing of direct and reflected laser beams.
  • Integrated interlock switch engages the gauge laser shutter whenever the guard cover is opened.
  • Side skirts contain reflected laser radiation from highly-reflective objects.

Proton part number: 00020MC230 (with side skirts)

PHA-2

Precision cable / wire aligner

  • For precision alignment of the laser beam measurement zone to cables or wires.
  • Provides two adjustable cable / wire guides.
  • Adjustment range accommodates object diameters from 0.3 mm (0.012”) to 10 mm (0.393”).

Proton part number: 00020MC900

SL Laser Guard PHA-2

Laser safety enclosure for PHA-1

  • Mounts to a PHA-2 to prevent accidental viewing of direct and reflected laser beams.
  • Integrated interlock switch engages the gauge laser shutter whenever the guard cover is opened.

Proton part number: 00020MC260

Harsh and extreme environment accessories

Air wipe SLMKII
  • Provides a constant flow of clean air over the laser window to disperse dust, debris or steam.
  • Easily detached by a quick release screw for cleaning.
  • Provides an 8 mm push fit tube fitting to connect to a clean air source.

Proton part number: 00041MC240

Air / water inlet elbow connector
  • For attaching cooling air or water connection.
  • 90° bend, freely rotatable.
  • 8mm push fit pipe connector.

Proton part number: 00002CM696

Calibration accessories

SL Calibration Case

Portable on-site calibration system

  • Motorised aluminium calibration wheel mounted in a rugged aluminium frame carry case.
  • Displays speed and length.

Proton part number: 00020TL750
