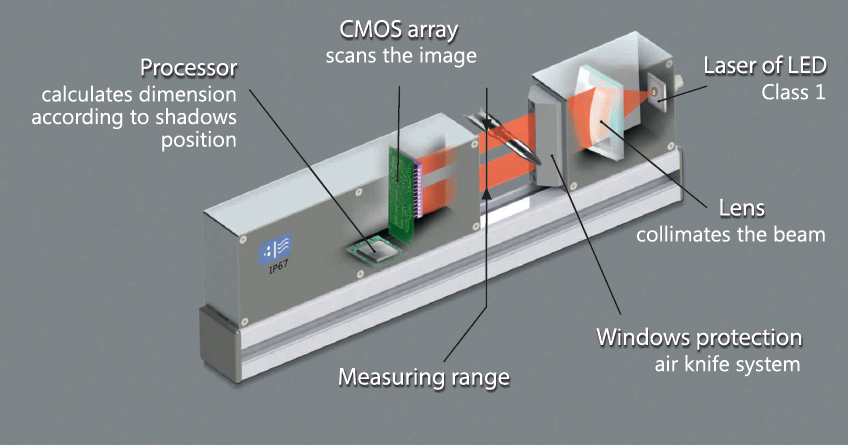

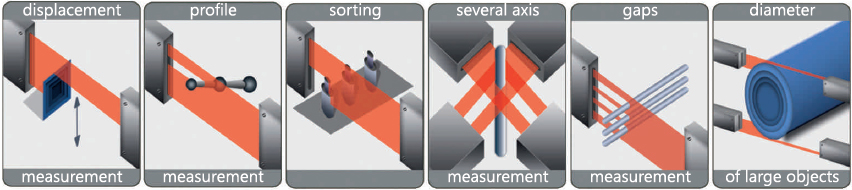

| A, mm | B, mm | C, mm | D, mm | E, mm | H, mm | H1,mm | K, mm | N, mm | |
|---|---|---|---|---|---|---|---|---|---|
| RF651-25 | 51 | 139 | 62 | 25 | 13 | 28 | 42,5 | 30 | 30 |
| RF651-25 | 91 | 120 | 134 | 50 | 20 | 31 | 45,5 | 40 | 80 |
| RF651-25 | 128 | 132 | 132 | 75 | 15 | 31 | 45,5 | 40 | 80 |
| RF651-100 | 165 | 165 | 150 | 98 | 20 | 31 | 45,5 | 40 | 80 |
| Control method | Direct through beam micrometers | High precision through beam micrometers with telecentric lens |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | RF651-10 | RF651-25 | RF651-50 | RF651-75 | RF651-100 | RF656-10 | RF656-25 | ||
| Measurement range, mm | 10 | 25 | 50 | 75 | 98 | 10 | 25 | ||
| Minimum size of the object, mm | 0.1 | 0.5 | 1 | 1.5 | 2 | 0.05 | 0.01 | ||
| Accuracy1 , um | ±3 | ±5 | ±10 | ±15 | ±20 | ±1.5 | ±2 | ||
| Max measurement frequency, Hz | 10000 | 2000 | 2000 | 2000 | 2000 | 10000 | 2000 | ||
| Light source | light diode or laser | ||||||||
| Lase safety class | 1 (IEC60825-1) | ||||||||
| Output interface | digital | RS232 (max. 46.,8kbit/s) or RS485 (max. 921,6 kbit/s) or Ethernet and (RS32 or RS485) | |||||||
| analog | 4…20 mA (load ≤ 500 Ohm) or 0…10 V | ||||||||
| Synchronization input | 2,4 – 5 B (CMOS, TTL) | ||||||||
| Logic output | three outputs, NPN: 100 mA max; 40 V max | ||||||||
| Power supply, V | 24 (13 …38) | ||||||||
| Power consumption, W | 1,5..2 | ||||||||
| Environment resistance | Enclosure rating | IP67 | |||||||
| Vibration | 20g/10…1000Hz, 6 hours, for each of XYZ axes | ||||||||
