라인레이저센서

RF 625D download

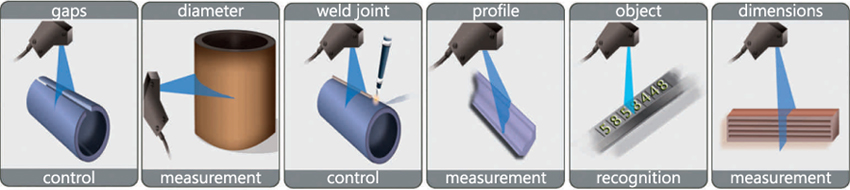

Non-conact measuring and checking of surface profile, dimensions, 3D models construction
  • Measuring ranges from 10 to 1450mm
  • ±5um accuracy
  • Sampling rate up to 2000HZ
  • RS232/RS483/Ethernet +4...20 mA/0...10V
  • Scanners with Blue and IR lasers

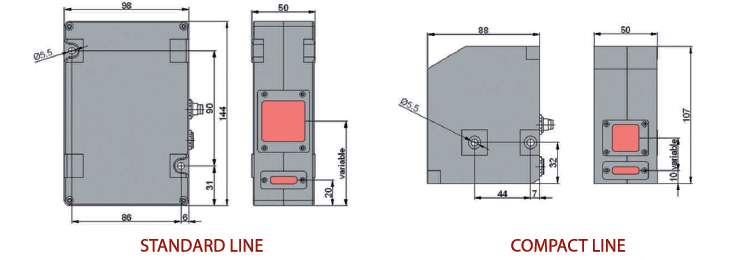

Overall dimension

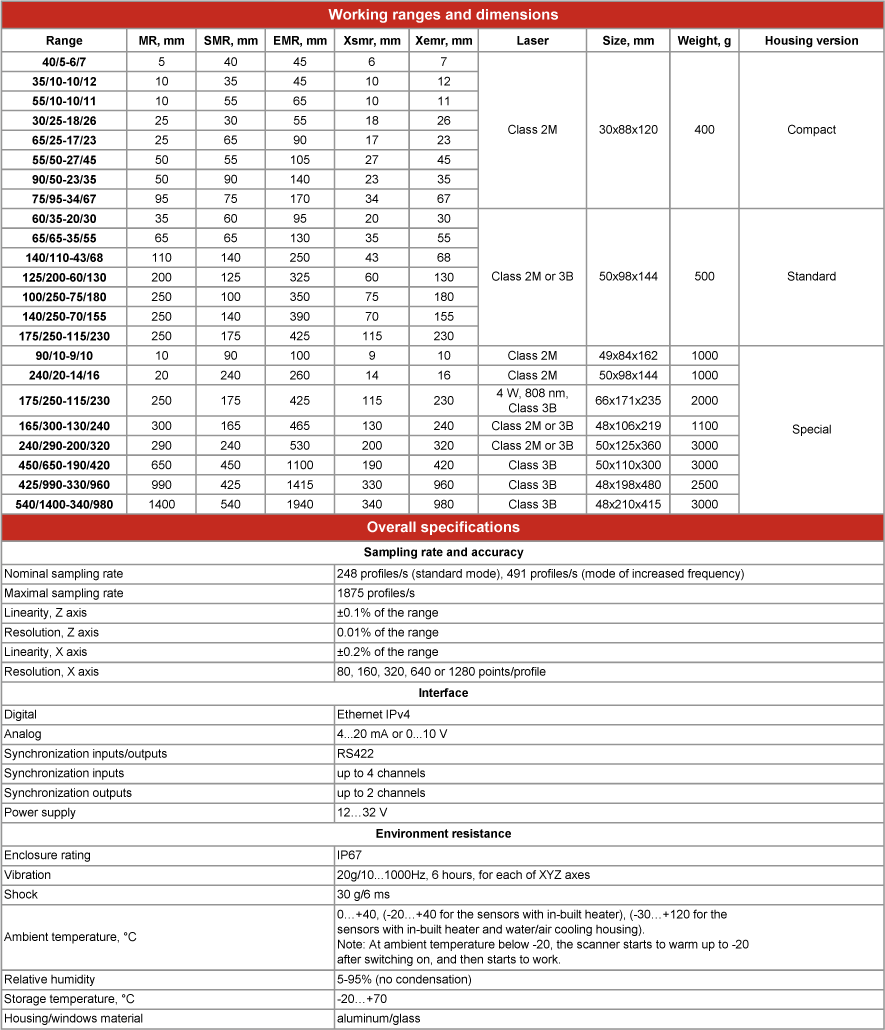

Specifications
