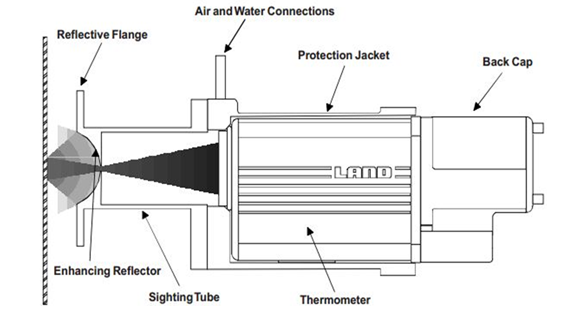

LIR - System 4 ( 비접촉식 적외선 온도 측정 시스템) download

Standard Thermometers specification

Model Range Wavelength Response Time (1) Accuracy (2)
General purpose, metals, glass, refractories
M1 450/1000C 450 to 1000 °c 1㎛ 5ms 0.4%k
M1 850/1850C 850 to 1850 °c 1㎛ 5ms 0.4%k
M1 600/1600C 600 to 1600 °c 1㎛ 5ms 0.4%k
M1 1100/2900C 1100 to 2900 °c 1㎛ 5ms 0.4%k
M1 800/2600C 800 to 2600 °c 1㎛ 5ms 0.7%k
M1 1500/4700C 1500 to 4700 °c 1㎛ 5ms 0.7%k
General purpose, metals and glass processing
M2 300/1100C 300 to 1100 °c 1.6㎛ 5ms 0.25%k+K
M2600/2000F 600 to 2000 °c 1.6㎛ 5ms 0.25%k+K
Bright oxidised or lightly oxidised metal surfaces
M4 50/250C 50 to 250 °c 2.4㎛ 100ms 3k
M4 50/250C 150 to 500 °c 2.4㎛ 100ms 3k
M4 50/250C 150 to 550 °c 2.4㎛ 100ms 4k
M4 50/250C 300 to 1000 °c 2.4㎛ 100ms 4k
Glass surface temperature measurement
M5 400/1300C 400 to 1300 °c 4.8 to 5.2㎛ 100ms 0.6%k
M5 750/2400C 750 to 2400 °c 4.8 to 5.2㎛ 100ms 0.6%k
M5 1000/2500C 1000 to 2500 °c 4.8 to 5.2㎛ 100ms 0.6%k
M5 1800/4500C 1800 to 4500 °c 4.8 to 5.2㎛ 100ms 0.6%k
Glass purpose, low temperature, metals, glass, food, paper and textiles
M6 0/300C 0 to 300 °c 3 to 5 ㎛ 100ms 0.3%k+2.5K
M6 50/600F 50 to 600 °F 3 to 5 ㎛ 100ms 0.3%k+2.5K
M6 100/700C 100 to 700 °c 3 to 5 ㎛ 100ms 0.3%k+2K
M6 200/1300F 200 to 1300 °F 3 to 5 ㎛ 100ms 0.3%k+2K
Plastic thin film
M7 25/375C 245 to 375 °F 3.43 ㎛ 100ms 3K
M7 75/700F 75 to 700 °F 3.43 ㎛ 100ms 3K
Food, textiles, paper, plastics, rubber, wood,paint and ceramics
M8 0/1000C 0 to 1000 °c 8 to 14 ㎛ 100ms 1%k+1K
M8 30/1830F 30 to 1830 °c 8 to 14 ㎛ 100ms 1%k+1K
Ratio thermometer, variable emissivity, target obscuration, partially filled field of view
R1 600/1600C 600 to 1600 °c 0.85 to 1.1 ㎛ 100ms 0.65%k
R1 1100/2900F 1100 to 2900 °F 0.85 to 1.1 ㎛ 100ms 0.65%k
R1 1000/2600C 1000 to 2600 °c 0.85 to 1.1 ㎛ 100ms 1.1%K
R1 1800/4700F 1800 to 4700 °F 0.85 to 1.1 ㎛ 100ms 1.1%K

Application

Metal Production Smelting, refining, pouring, continuous casting, slabbing, reheating, rolling, drawing, coiling, extruding, coating, annealing, stamping, pressing, forging, sintering, galvanizing, heat treatment…
Glass Production Melting, refining, firing, gob formation, furnaces, floating, molding, tempering, laminating, fiber drawing, vapor deposition, preforming...
Mineral Processing Firing, mixing, drying, storing, conveying, laying...
Paper Rolling, drying, calendering, coating, printing, photographic, curing...
Rubber Mixing, calendering, extruding, thermoforming, molding, shrinking, laminating, blown film..
Chemical Catalyst beds, powder drying, mixing, furnaces, thermal reactors...
Food & Pharmaceuticals Freezing, molding, extrusion, sterilizing, tablet drying, labelling, sealing...
Electronics Wave soldering, glass coating,circuit board testing, doping....
